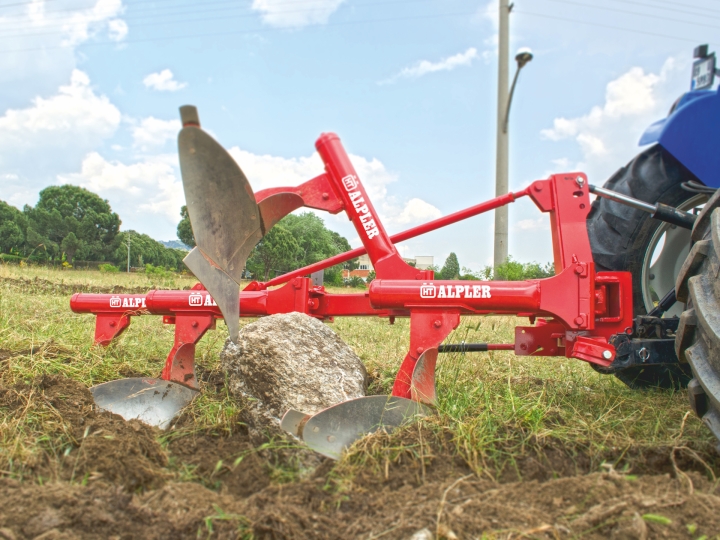

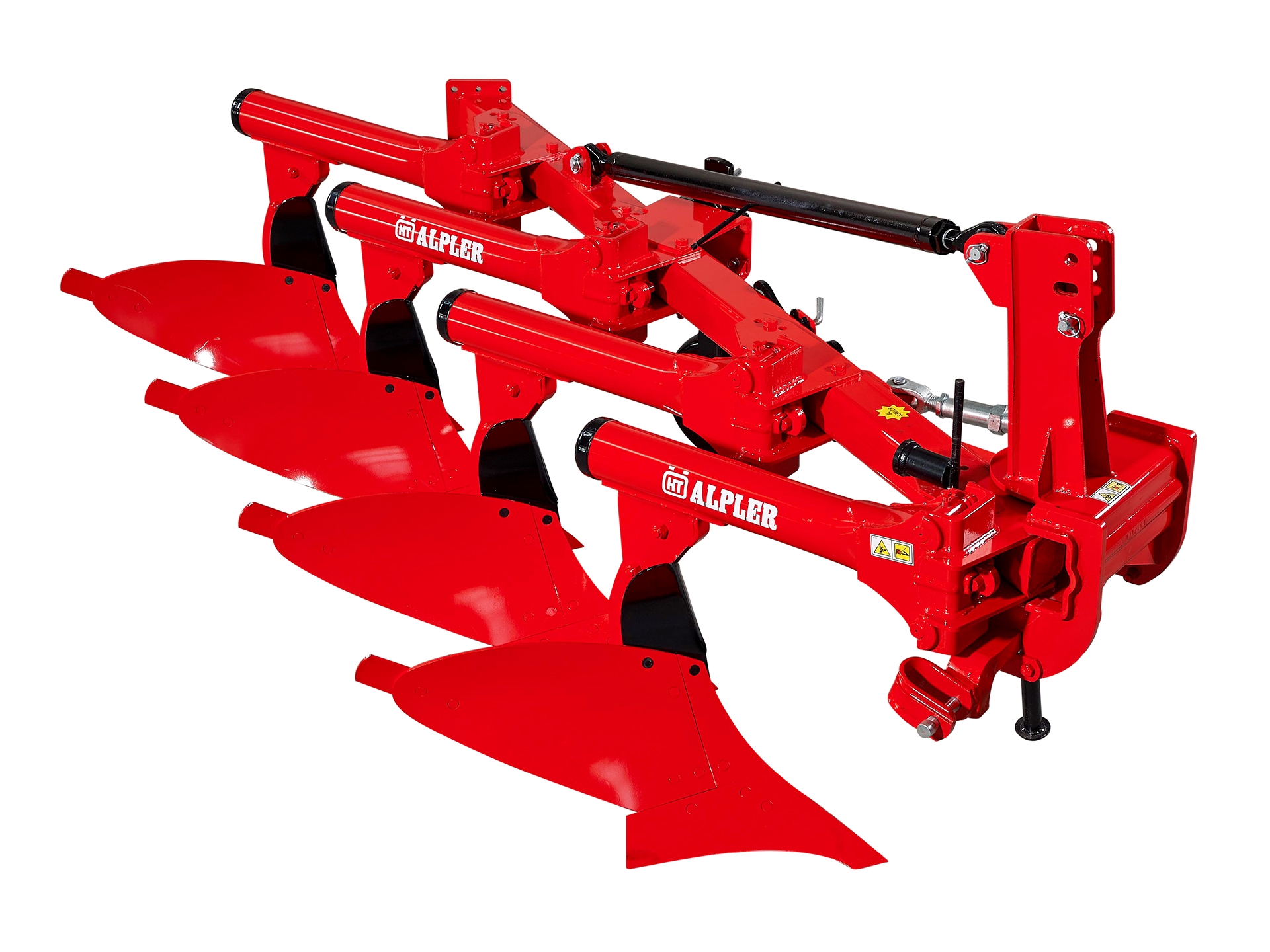

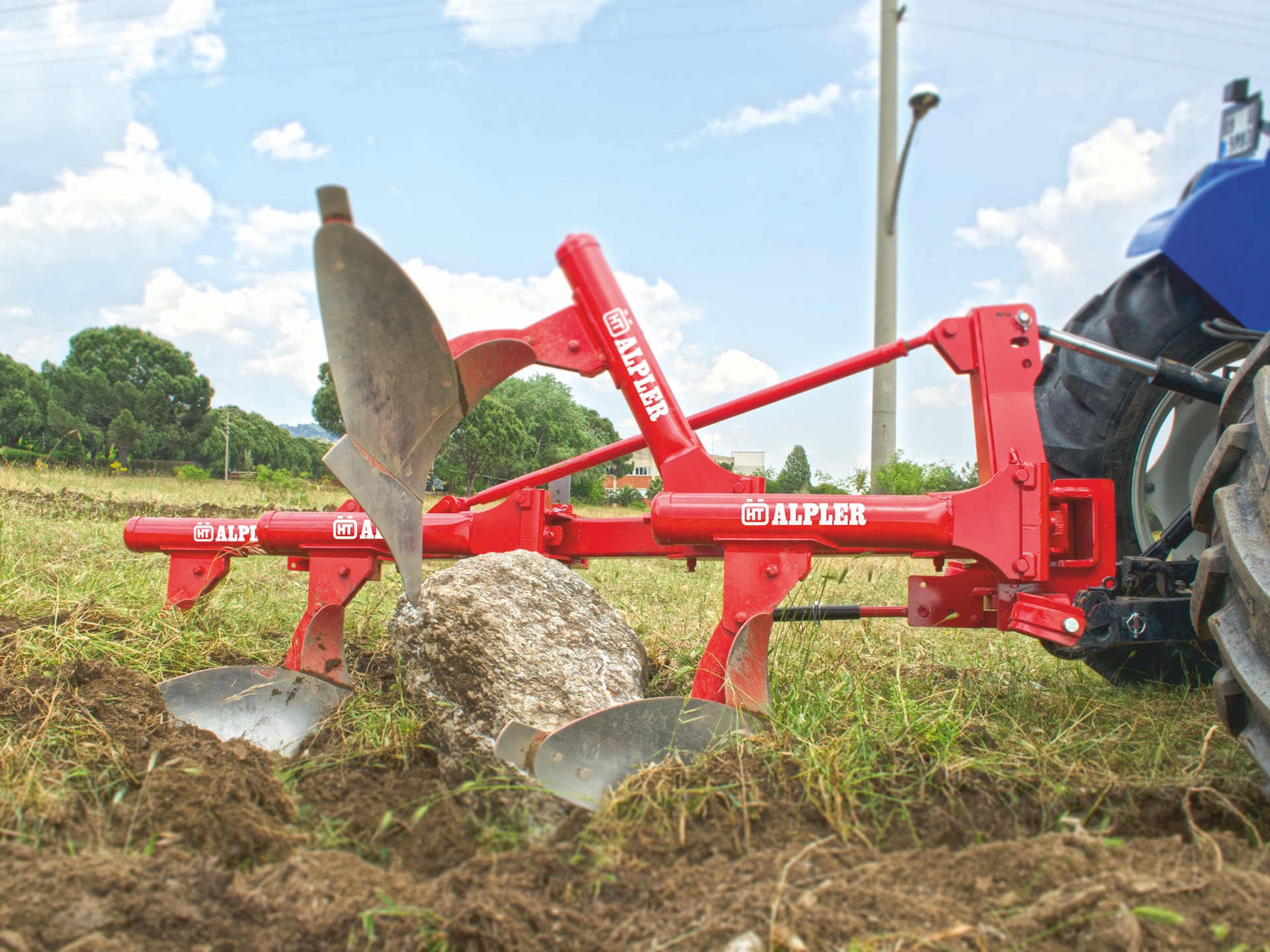

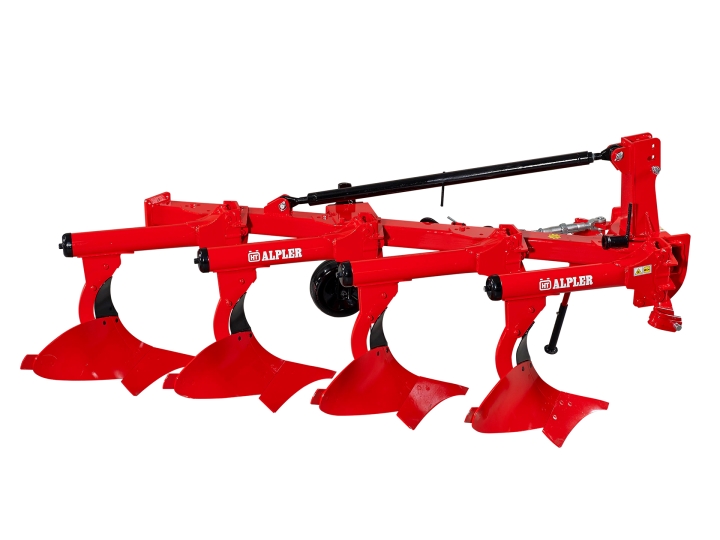

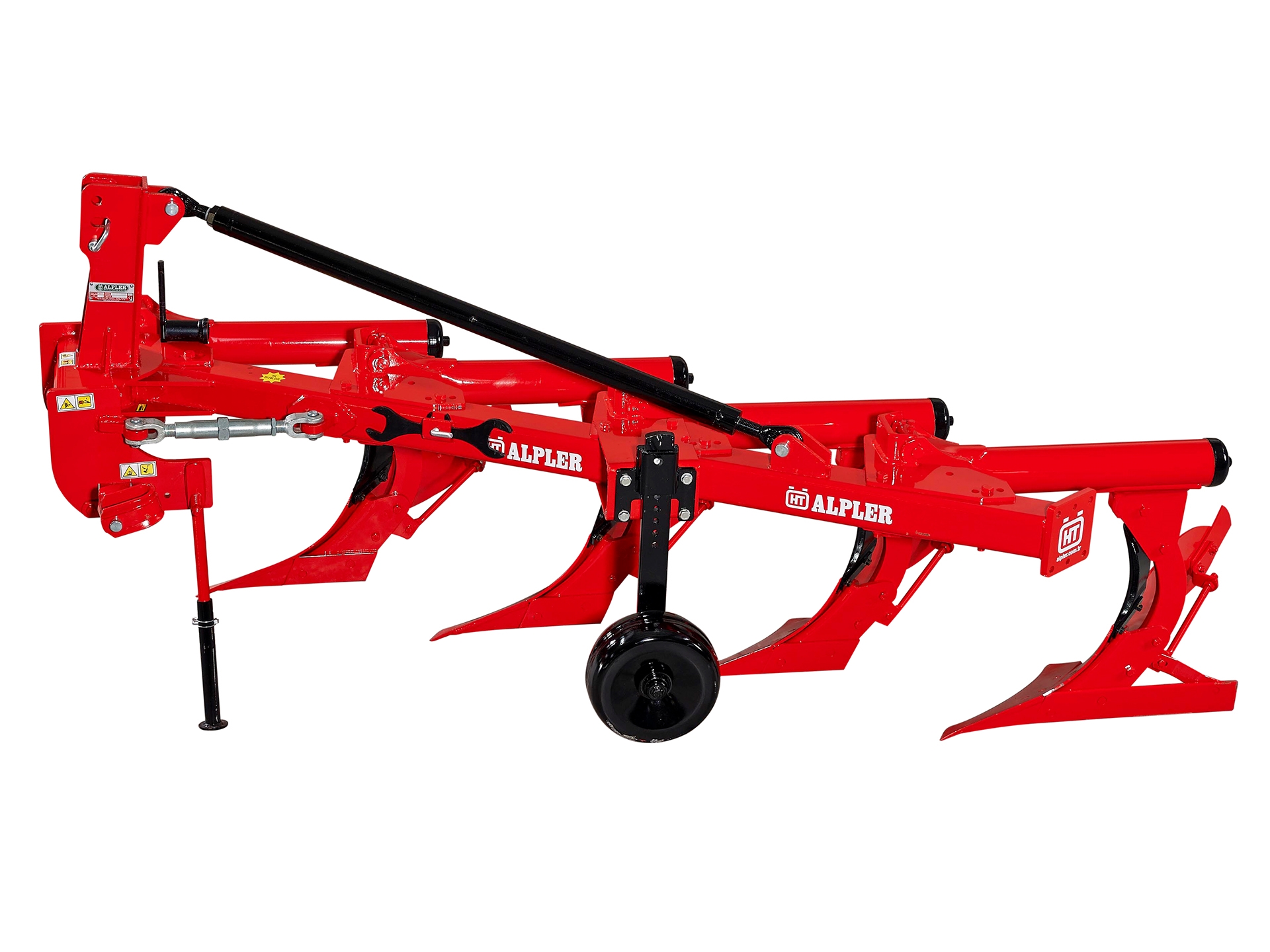

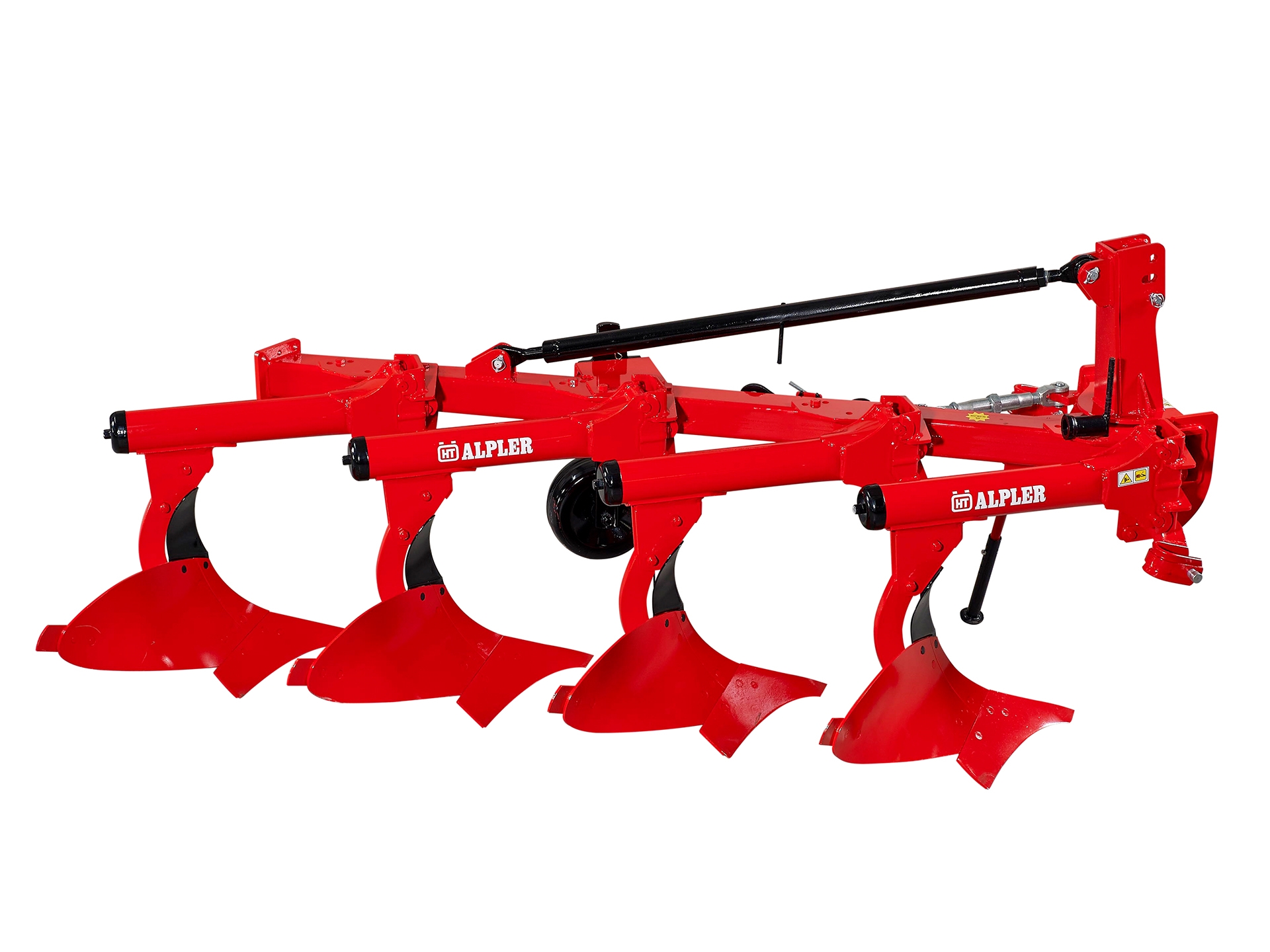

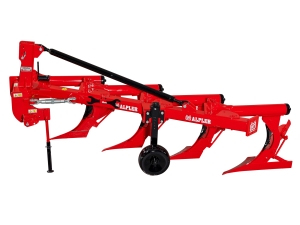

Automatic Plough With Horizontal Spring

Alpler - Yatık Yaylı Otomatik Pulluk
Alpler - Yatık Yaylı Otomatik Pulluk
Alpler - Yatık Yaylı Otomatik Pulluk
Alpler - Yatık Yaylı Otomatik Pulluk
      • Non-stop trouble free plowing opportunity for stony, rooted and first time plowed lands.
      • The two helical springs lets the swing out bodies re-enter the soil immediately.
      • The spring pressures can be easily adjusted for each body to different soil conditions
        in order to obtain optimum release characteristics.
      • Flanged frame to add an extension, if required.
      • Mechanical or Hydroulic working width adjustment (Optional).
      • Trash boards.
      • Shares with Reversible Points.
      • Slatted Body.
      • Wing Coulter.
      • Metal Depth Wheel
      • Bar Point Body.
      • F, X and V Type Mouldboard
    • Model Number of Furrows  Clearance (CM) Distance Between Beams (CM) Working Width (CM) Working Depth (CM) Weight (KG) Power Requirement (HP)
      OPB 123  3 75 75 25-30-35 26 670 50-60
      OPB 143 3 75 80 30-35-40 28 680 60-70
      OPB 124 4 75 75 25-30-35 26 832 70-90
      OPB 144 4 75 80 30-35-40 28 851 80-100
      OPB 125 5 75 75 25-30-35 26 1005 90-110
      OPB 145 5 75 80 30-35-40 28 1014 100-120
      • Upon the needs of customers we keep the right to make changes on the product specifications.
