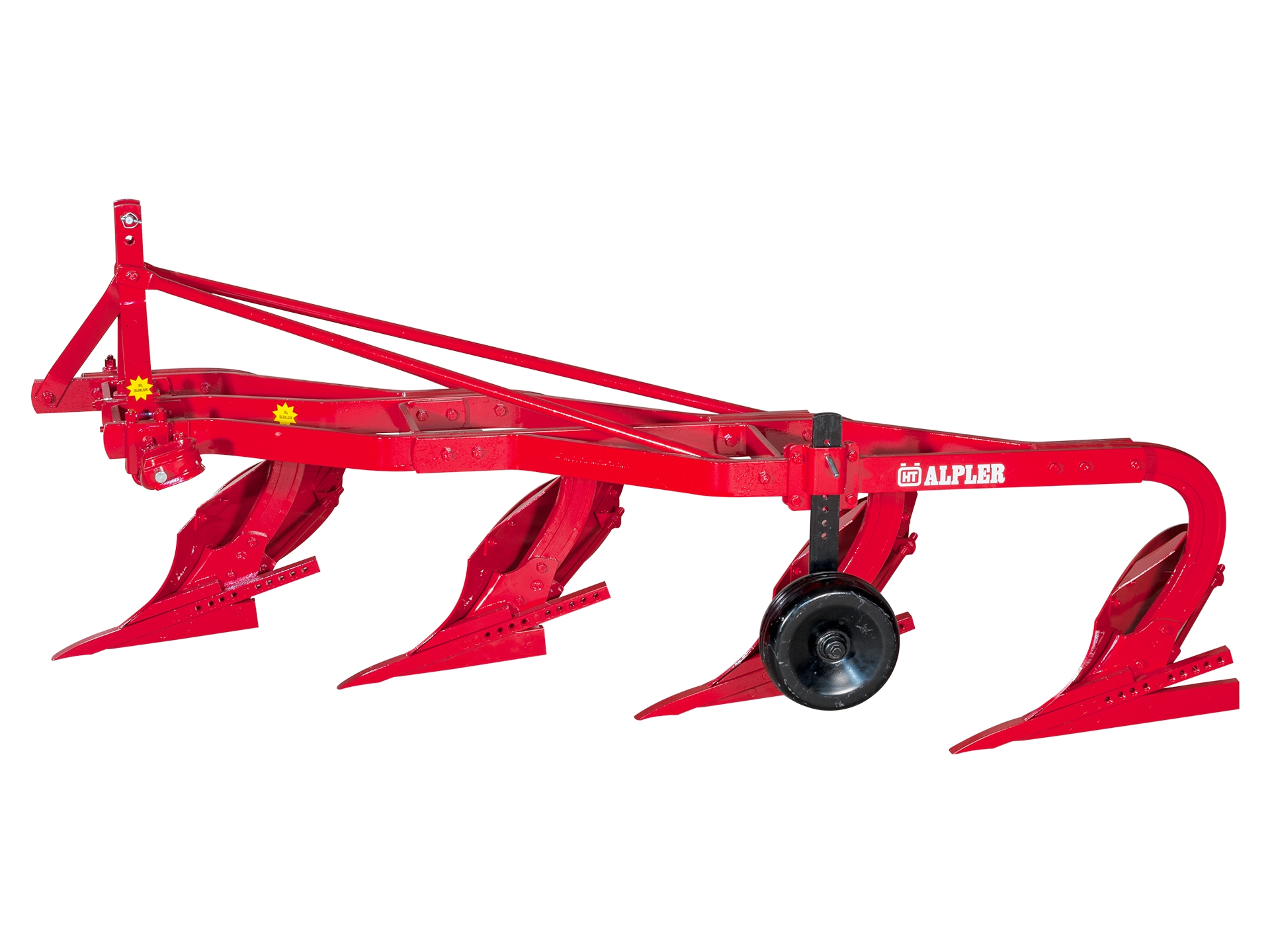

Conventional Plough With Bar Point

    • Economical solution for stony, rooted,and aggressive soil conditions.
    • Cost reduction with use of high resistant bar point comparing to plain share. By pushing the bar point  forward, getting "first  day use plowing quality".
    • Trash boards.
    • Mouldboard Extension (Std). Deflector (Std).
    • Slatted Body. Wing Coulter.
    • Metal Depth Wheel
    • Disc Coulters.
    • U-Shape Lower Connection Bar.
  • Model CLEARANCE(CM) DISTANCE BETWEEN BEAMS (CM) WORKING WIDTH (CM) WORKING DEPTH(CM) WEIGTH (KG) POWER REQUIREMENT (HP)
    Tekli 2'li 3'lü 4'lü 5'li Tekli 2'li 3'lü 4'lü 5'li
    KP08 64 59 23,5 20 134 192 275 408 573 25-30 35-40 40-45 60-65 70-80
    KP09 65 62 24,5 22 165 230 337 507 705 30-35 40-45 45-50 60-70 70-80
    KP10 65 70 25,5 24 175 255 360 545 708 30-35 40-45 50-60 70-80 85-90
    KP11 65 71 27,5 24 178 250 365 555 711 35-40 45-50 60-70 70-85 90-100
    KP12 65 76 30 26 180 260 377 576 715 40-50 45-50 60-70 70-85 90-100
    KP13 65 77 32,5 28 184 265 390 580 730 40-50 45-50 70-80 80-85 90-100
    KP14 65 79 35 28 195 268 400 586 737 40-50 50-60 70-80 85-95 100-110
    KP16 70 82 40 30 215 306 466 675 850 50-60 60-70 80-90 90-100 110-120
    • When placing an order, add the number of throws to the end of model code.
    • Upon the needs of customers we keep the right to make changes on the product specifications.
