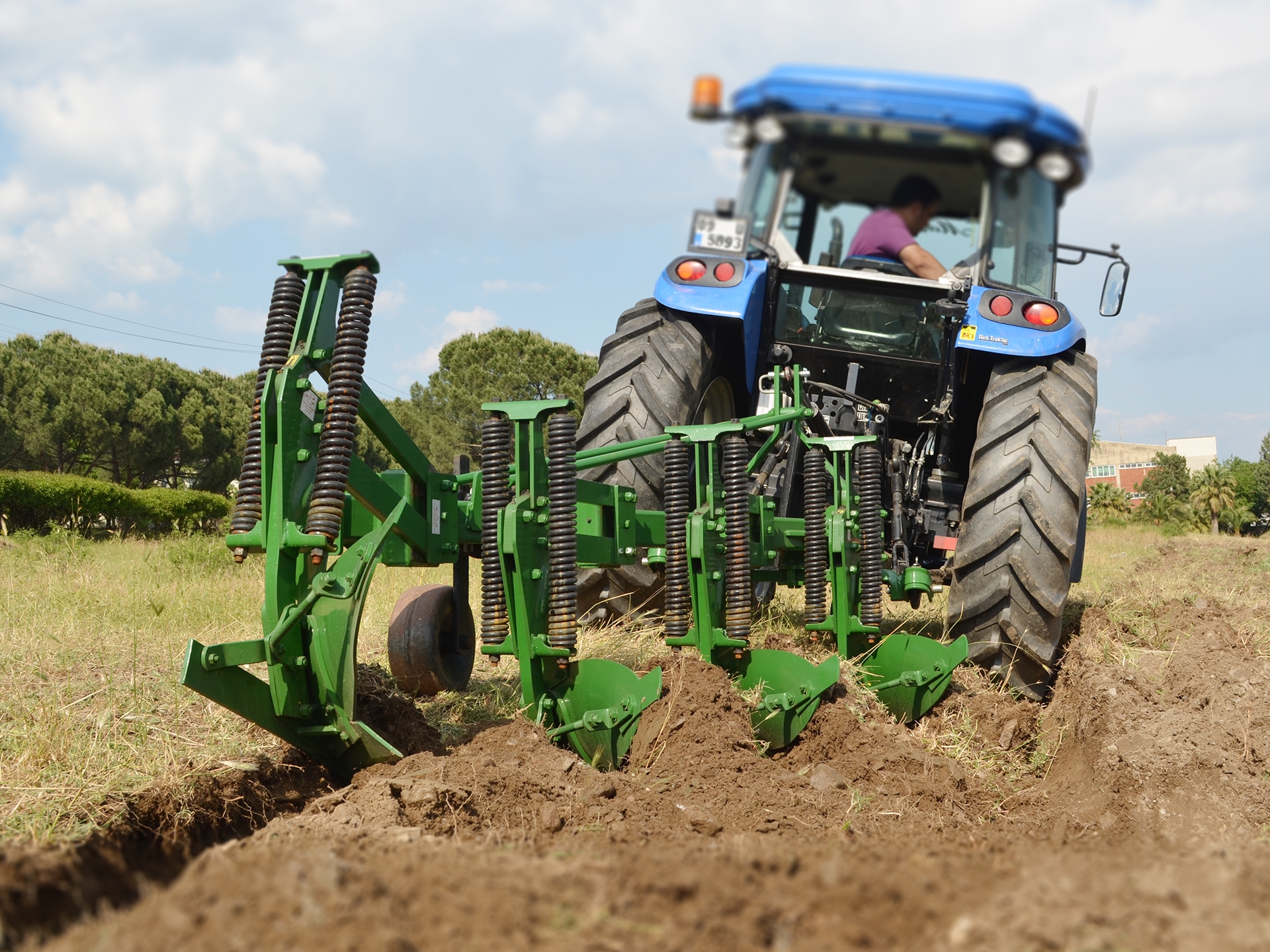

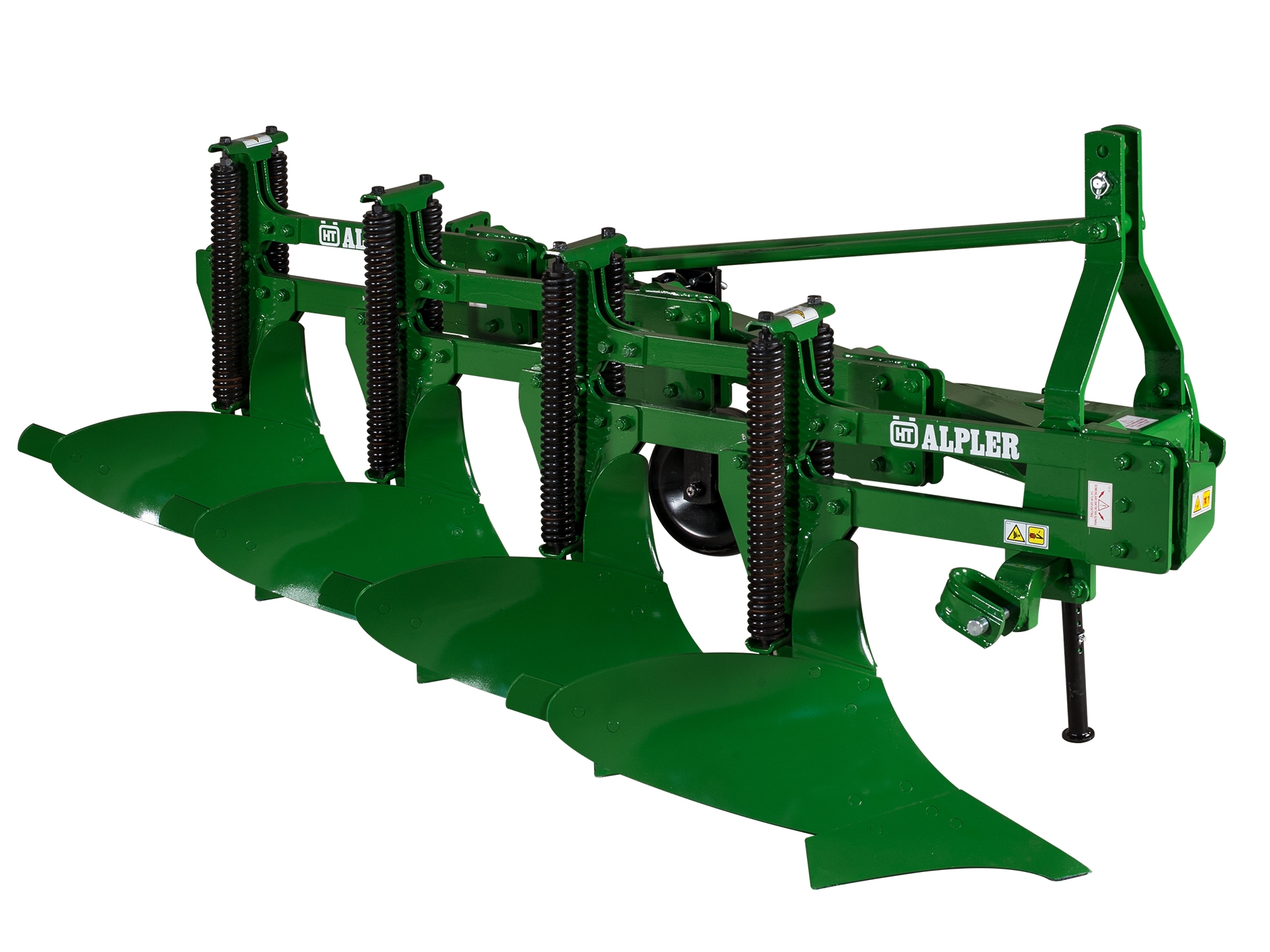

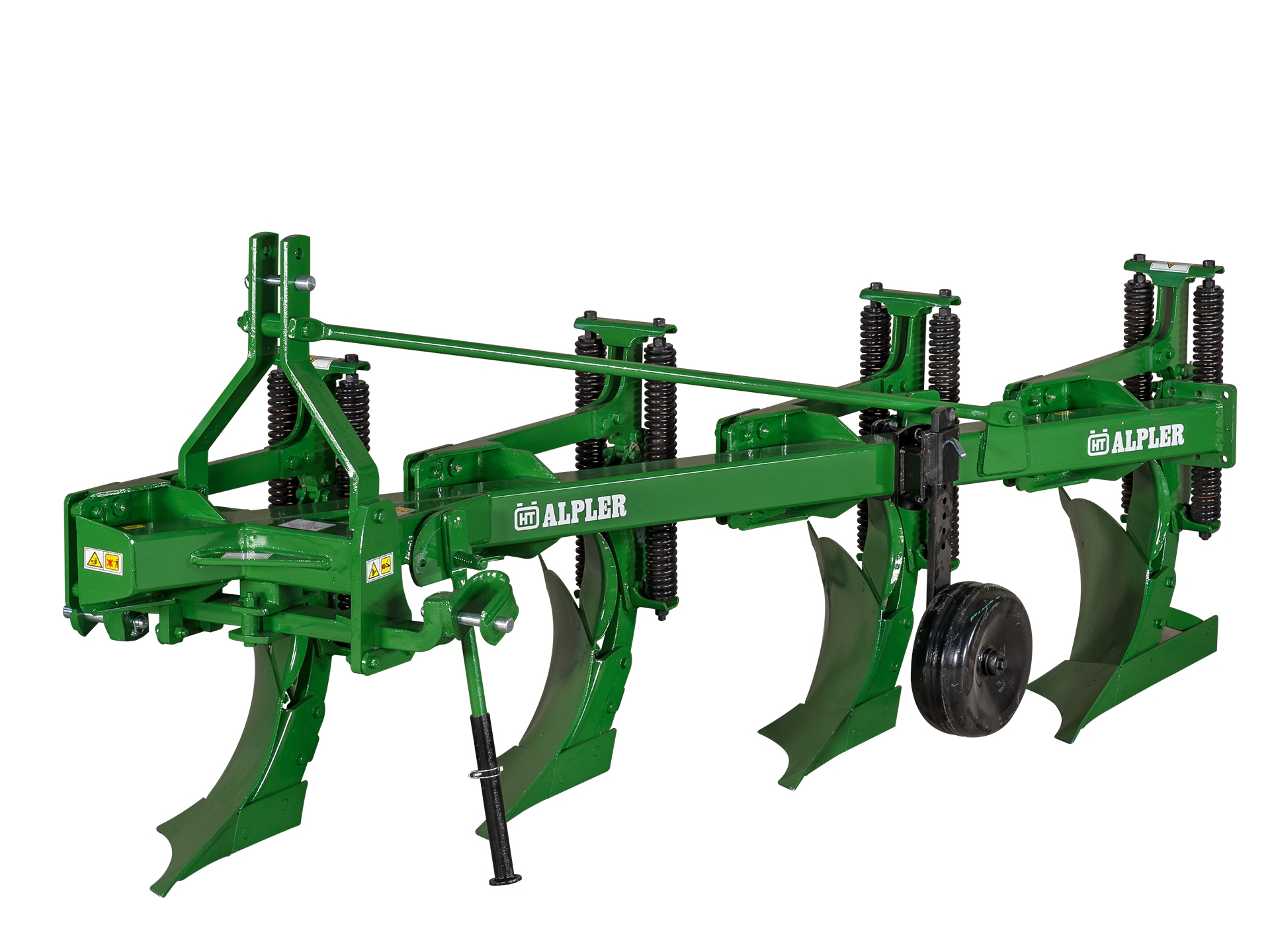

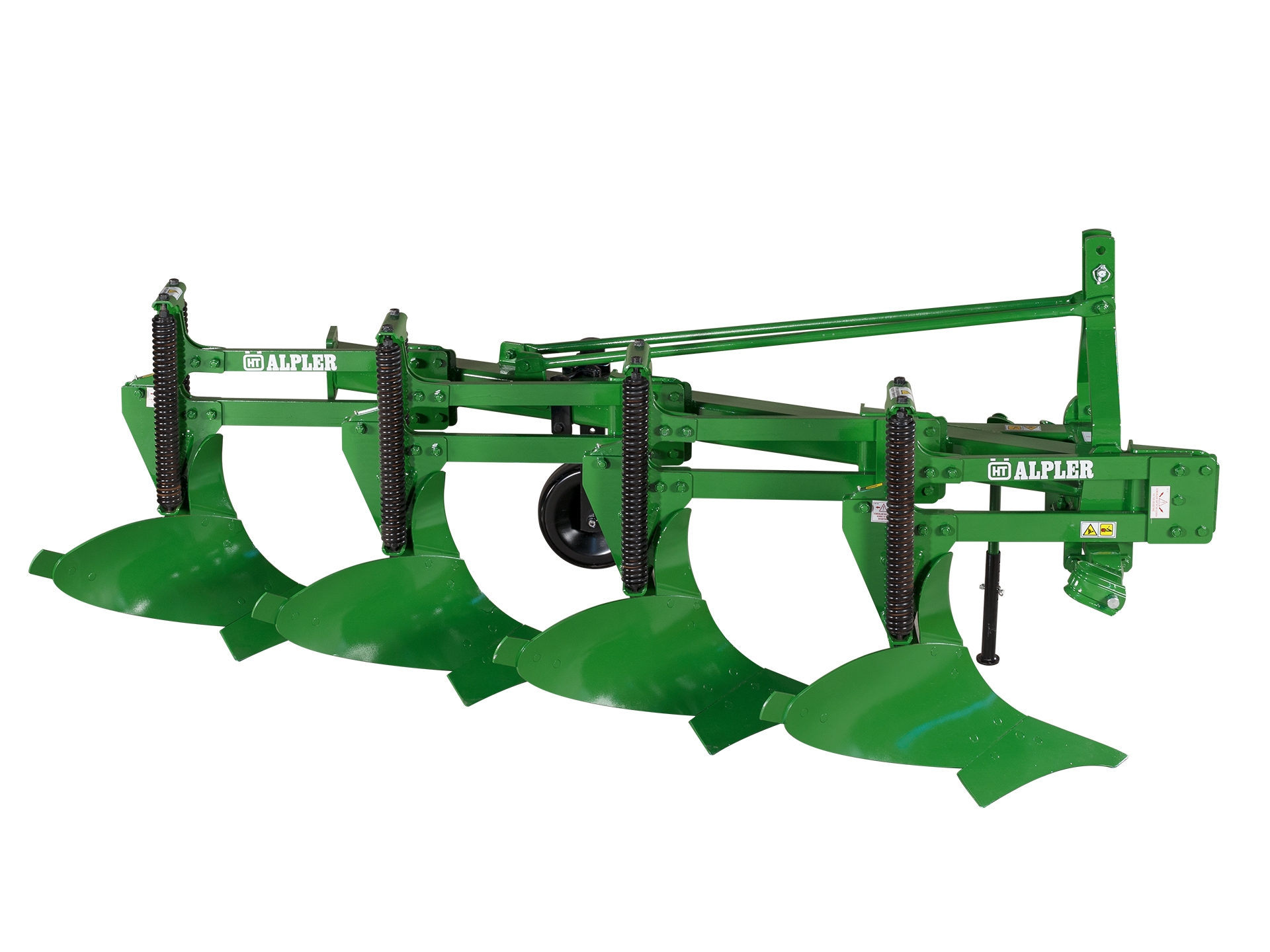

Automatic Plough With Vertical Spring

Alpler - Dik Yaylı Otomatik Pulluk
Alpler - Dik Yaylı Otomatik Pulluk
Alpler - Dik Yaylı Otomatik Pulluk
Alpler - Dik Yaylı Otomatik Pulluk
      • Non-stop trouble free plowing opportunity for stony, rooted and first time plowed lands. The two helical springs lets the swing out bodies re-enter the soil immediately.
      • The spring pressures can be easily adjusted for each body  to different soil conditions in order to obtain optimum release characteristics.
      • Flanged frame to add an extension,if  required.
      • Mechanical or Hydroulic working width adjustment (Optional).
      • Trash boards.
      • Shares with Reversible Points. Mouldboard Extension (Std). Deflector  (Std).
      • Slatted Body. Wing Coulter.
      • Metal Depth Wheel
      • Bar Point Body.
      • F, X and V Type Mouldboard
    • Model CLEARANCE(CM) DISTANCE BETWEEN BEAMS(CM) WORKING WIDTH  (CM) WORKING DEPTH (CM) WEIGTH
      (KG)      		 POWER REQUIREMENT (HP)
      2 3 4 5 2 3 4 5
      OP10 70 75 25,5 24 390 560 745 915 30-40 45-50 70-80 80-90
      OP11 70 75 27,5 24 400 575 750 917 30-40 50-55 70-85 85-95
      OP12 70 75 30 26 410 590 760 925 40-50 55-60 70-85 90-100
      OP13 70 75 32,5 28 414 592 763 935 40-50 55-60 70-85 90-100
      OP14 70 75 35 28 417 595 765 941 40-50 60-70 80-90 90-110
      OP16 70 75 40 30 430 610 770 950 50-60 70-80 80-90 100-110
      • When placing an order, add the number of furrows to the end of model code.
      • Upon the needs of customers we keep the right to make changes on the product specifications.
